Building on the legacy of the industry-leading 105SLPlus printer, the ZT510 includes the core features you need in an industrial printer at a cost-effective price point. The ZT510 provides a proven, durable design and construction while adding advanced management and monitoring capabilities. That means you get 24/7 reliability to keep your operations running smoothly today, plus longevity and advanced functionality to power through every challenge in the years to come — all at an exceptional value.



Specifications



Standard Features

  • Print Methods: Thermal transfer and direct thermal printing
  • Construction: Metal frame
  • Thin film printhead with E3™ Element Energy™ Equalizer for superior print quality
  • Communications: USB, Serial, Gigabit Ethernet, Bluetooth® LE
  • Backlit, multi-line display including an intuitive menu, easy-to-use keypad and password protection



Printer Specifications

Resolution203 dpi/8 dots per mm
300 dpi/12 dots per mm (optional)
Memory512 MB RAM memory
2 GB on-board linear Flash memory
Maximum Print Width4.09"/104 mm
Maximum Print Speed12 ips/305 mm per second
Media SensorsDual media sensors: transmissive and reflective
Maximum Continuous Print Length• 203 dpi: 150"/3810 mm
• 300 dpi: 100"/2540 mm



Media Characteristics

Media Width0.79"/20 mm to 4.5"/114 mm
Maximum Media Roll Size8.0"/203 mm O.D. on a 3"/76 mm I.D. core
Thickness0.003"/0.076 mm to 0.012"/0.305 mm
Media TypesContinuous, die-cut, notch, black-mark



Ribbon Characteristics

Standard Length1476'/450 m
Width2.00"/51 mm to 4.33"/110 mm
Core1.0"/25.4 mm I.D.



Operating Characteristics

EnvironmentalOperating Temperature:
• Thermal transfer = 40°F to 104°F/5°C to 40°C
• Direct thermal = 32°F to 104°F/0°C to 40°C
Operating Humidity: 20% to 85% non-condensing
Storage/Transportation Temperature: -22°F to 140°F/ -30°C to 60°C
Storage Humidity: 20% to 85% non-condensing
ElectricalAuto-detectable (PFC Compliant) 90-265 VAC, 47-63Hz, rated at 250 Watts
ENERGY STAR qualified
Agency ApprovalsIEC 60950, EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3
cTUVus, CE Marking, FCC-B, ICES-003, VCCI, C-Tick, NOM, S-Mark (Arg), CCC, CU, BSMI, KCC, SABS, IN-Metro



Physical Characteristics

 Closed
Length20.17"/512.3 mm
Width10.56"/268.2 mm
Height15.58"/395.68 mm
Weight50 lbs/22.7 kg



Software Tools

Link-OS Solutions
Document Design – Quickly design a customized print solution using your business data and Zebra’s intuitive plug-and-print design tools.
Device Integration – Zebra offers apps and products designed to help you integrate Zebra devices into your existing systems.
Device Management – Manage your print operations locally and globally with Zebra’s suite of device management tools.
Developer Tools – Provides you the tools you need to create your own apps, including documentation, source code, programming languages, templates and more.

Web View
Connect and control Zebra barcode printers using ZPL II via the printer’s web interface using common web browsers.

Alert
Printers equipped with ZebraNet print servers will notify you via any email-enabled, wired or wireless device to minimize downtime.



Firmware

ZBI 2.0™ – Optional powerful programming language that lets printers run stand-alone applications, connect to peripherals and much more.

ZPL and ZPL II® – Zebra Programming Language provides sophisticated label formatting and printer control, and is compatible with all Zebra printers.

XML-enabled Printing – allows XML communications for barcode label printing.



Barcode Symbologies

Linear Barcodes: Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2- or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code
2D Barcodes: Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, TLC 39, MicroPDF, RSS-14 (and composite), Aztec



Fonts and Graphics

16 resident expandable ZPL II bitmap and two resident scalable ZPL fonts
Asian and other international scalable and smooth bitmapped fonts
Unicode™: For multi-language printing
Downloadable objects include graphics, scalable and bitmap fonts, label templates and formats
IBM Code Page 850 international character sets are available in the fonts A, B, C, D, E, F, G and 0 through software control
Code Page 1250, 1252, 1253, 1254, 1255 Support with font 0
32 MB user available DRAM
512 MB user available on-board Flash



Options and Accessories

Connectivity
• Two open communication slots to add internal cards for 802.11ac, parallel, Ethernet. IPv6 option is available as an external dongle attached to a parallel port

Media Handling
• Rewind: Internally rewinds a full roll of printed labels on 3" core, or peels and rewinds liner
• Cutter: Front-mount guillotine cutter and catch tray

Keyboard Display Unit
• ZKDU™ keyboard display units for stand-alone printing applications

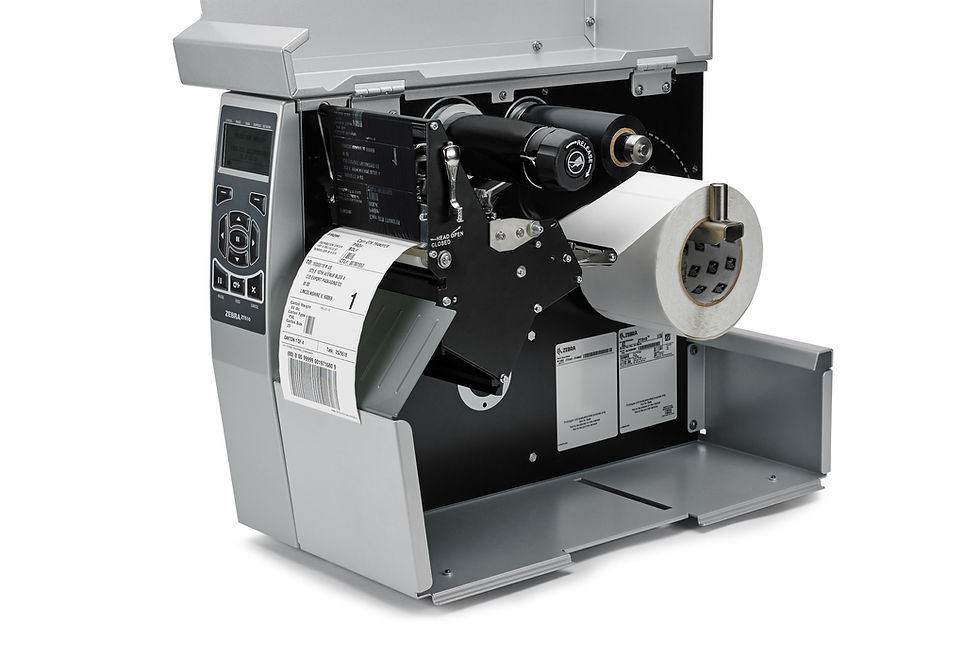

ZT510 Industrial Printer
